Bridge and infrastructure work has a problem a building site usually doesn't: there's often nothing to stand on below. The access is needed at deck edges, at soffits, and up piers, over water, live traffic, or a ravine, where a scaffold can't be built from the ground. We supply the cantilever gear, pier platforms, safety cages, and containment that put crews on those structures and keep whatever is underneath protected.
The challenge on bridges and infrastructure
The constraints on this work come from the site, not the schedule:
- There's no ground below to stand a scaffold, because the structure crosses water, traffic, rail, or a drop
- Access is needed in awkward places at once, the deck edge and fascia, the soffit below, and the full height of the piers
- Live traffic or a waterway runs underneath, so any falling material or debris has to be caught before it gets there
- The elements are heavy and often irregular, with tall piers, deep girders, and long spans that don't suit standard parts
- Weather and, on many structures, constant dynamic load from passing traffic are part of the working environment
The solution: access from the structure, protection below
The access is carried by the structure itself, not by the ground: pier platforms wrap the columns, safety ladder cages give vertical access up them, and cantilever brackets project work positions out from the deck edge where nothing can stand below. Underneath the work, edge protection, debris nets, and containment keep traffic and the waterway clear of falling material, and loading platforms stage material off the structure. The exact platform arrangement, deck-edge cantilever, pier-mounted, or a hung platform, is set by the bridge and the project design, and our hardware is built to fit into that design rather than force a single method onto every structure.
On non-standard geometry, the elements are made to size. Tall piers, deep fascia girders, and long or angled spans get custom cantilever brackets and platforms instead of a standard part forced to fit.
What's in the kit
| Part of the system | What it does |
|---|---|

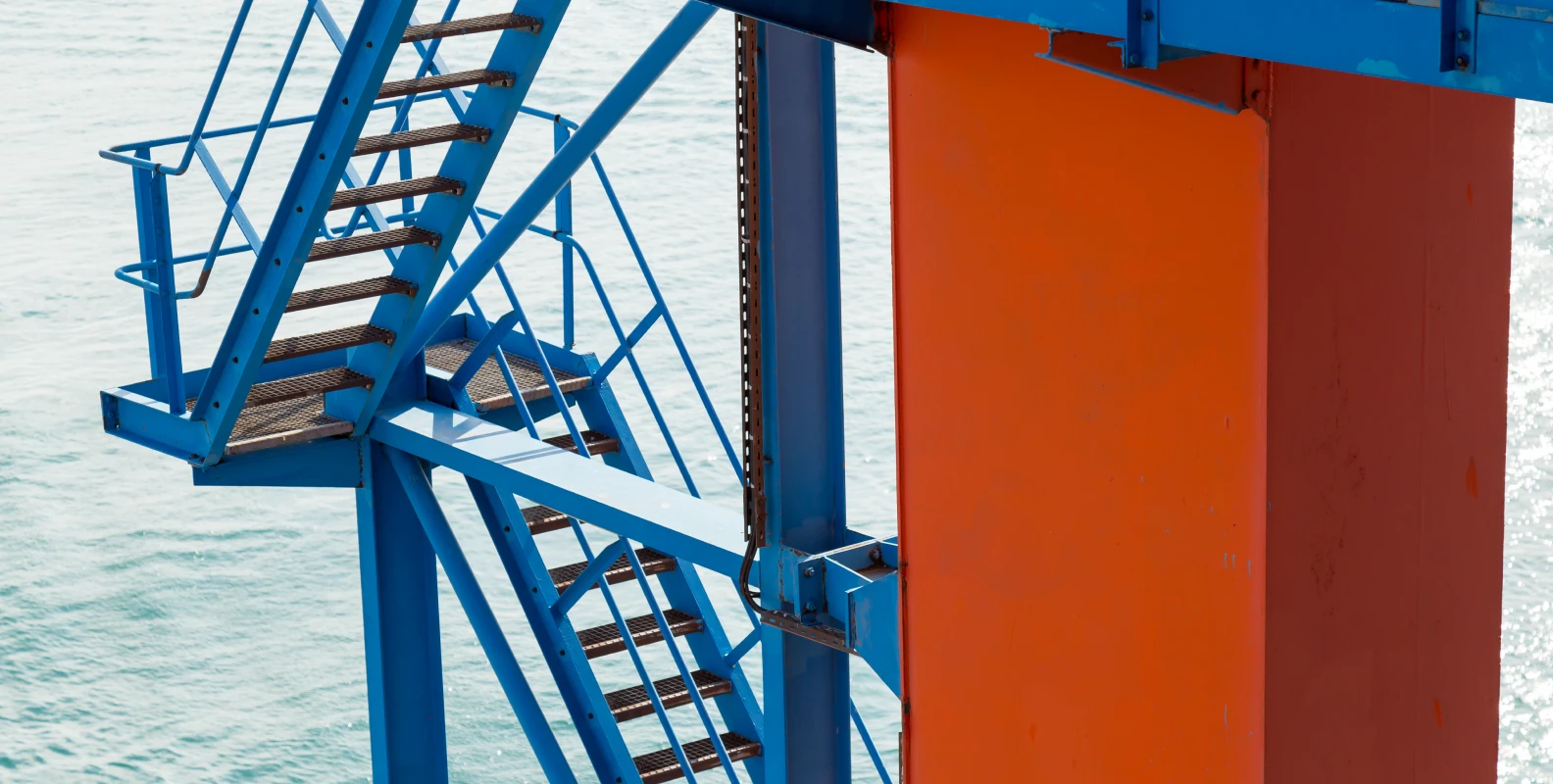

| Pier column operation platforms | Wrap the pier or column so crews can work its full perimeter at height |
| Safety ladder cages | Give protected vertical access up piers, columns, and towers |
| Cantilever brackets and beams (heavy, custom) | Project access out from the deck edge or an elevated structure where the ground can't carry a scaffold |

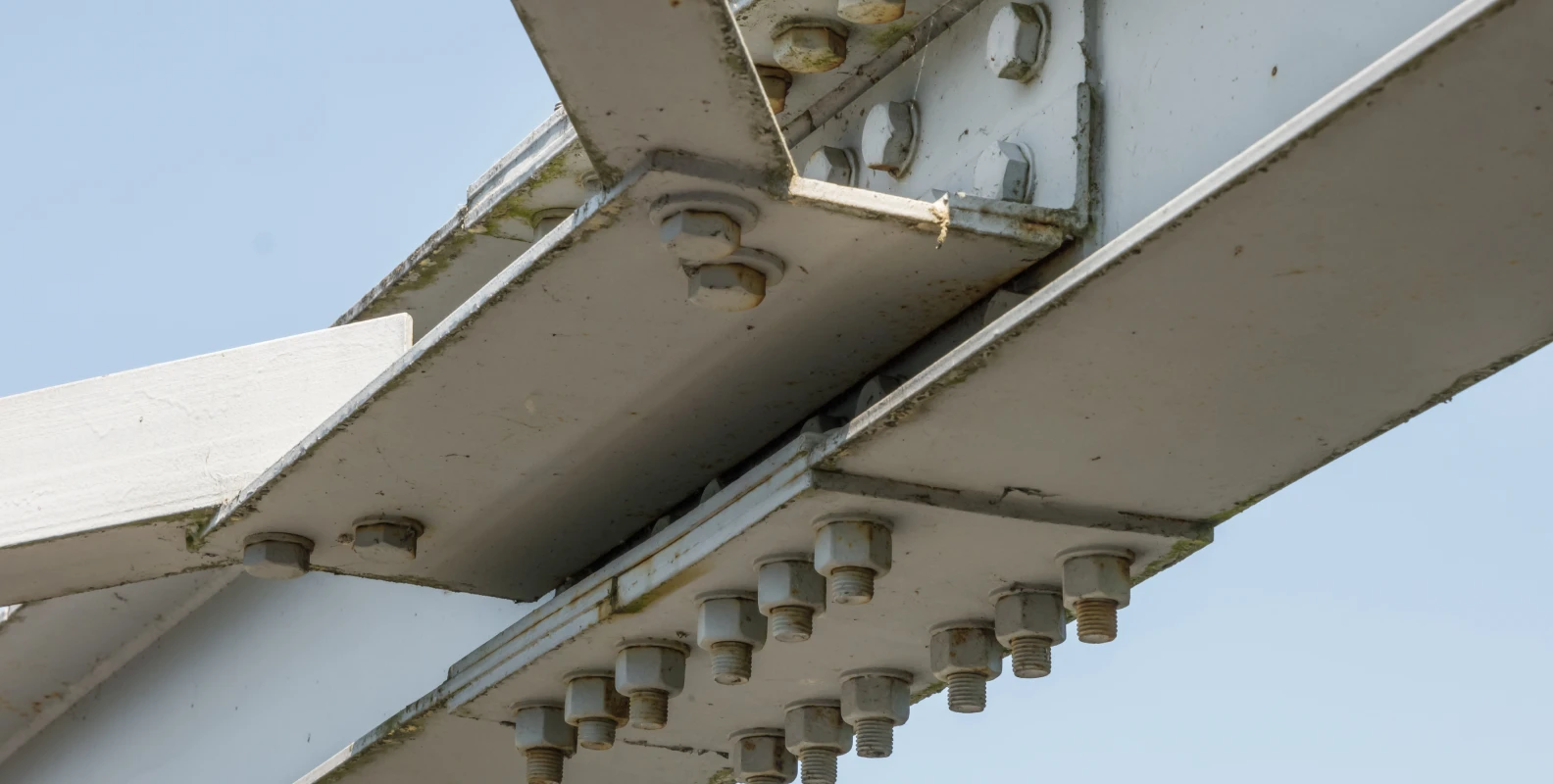

| Through-bolt and embedded anchors | Fix the brackets and platforms to concrete piers, decks, and edge structures |
| Edge protection, debris nets, and containment | Catch falling material and dust so traffic and the waterway below stay clear |
| Loading platforms and safety facilities | Stage material off the structure and round out the site package |
What you get out of it
| Factor | Outcome on a bridge or infrastructure site |
|---|---|
| Access without ground support | Crews reach deck edges, soffits, and piers over water or traffic, where a ground scaffold can't be built |
| Pier and column work | Pier platforms and cages give safe, full-perimeter access and vertical travel up tall columns |
| Public and environmental safety | Edge protection, nets, and containment keep debris off the road and out of the water below |
| Heavy and non-standard geometry | Custom brackets and platforms handle tall piers, deep girders, and long or angled spans |
| Reuse | Bolted, standardized parts come off clean and move to the next span or pier |
The containment isn't a nice-to-have on these jobs. When the work is over a live road or a waterway, keeping material and dust from reaching what's below is often what makes the work permissible at all, so the protection and the access have to be planned together.
Where it fits
- Bridge and viaduct construction and maintenance, including deck-edge, fascia, and soffit access
- Pier columns and pier caps that need full-perimeter access and vertical travel
- Elevated highway and metro viaducts with repetitive piers and long runs
- Retaining walls, culverts, and abutments where the face sits above water or a drop
- Municipal infrastructure edge work over live traffic or waterways
Why source the system from us
We run our own factory and make heavy and non-standard gear to order, so tall-pier platforms, long cantilever brackets, and awkward geometry are fabricated to your dimensions rather than bought off a shelf and forced to fit. The pier platforms, cages, cantilever brackets, and the protection and containment that go with them come as one matched package, hot-dip galvanized, with mill and load test reports and the drawings your engineer needs. OEM and ODM supply are available, and we ship worldwide with samples on request.
Talk to us about your project
Send us the structure type, pier heights, span and edge geometry, and what runs underneath, and we'll spec a matched infrastructure kit, pier platforms, safety cages, cantilever brackets, anchors, plus edge protection and containment, in custom sizes with test reports. Reach our team through the contact page for a quote and lead time.
Frequently asked questions
How do you provide access on a bridge over water or traffic?
Since a scaffold can't stand on the ground there, the access is carried by the structure. Cantilever brackets project work positions out from the deck edge, pier platforms handle the columns, and the exact arrangement is engineered for the specific bridge. We supply that hardware along with the edge protection and containment that keep material off whatever runs underneath.
How do you work on bridge piers and columns?
With pier column operation platforms that wrap the pier so crews can reach its full perimeter at height, and safety ladder cages that give protected vertical access up the column. On tall or wide piers these are made to size rather than assembled from a fixed standard.
How do you protect the traffic and water below?
With edge protection, debris nets, and containment at the work face, plus loading platforms to keep material staged on the structure instead of dropped. On dusty work the face can be wrapped to hold particles. This protection is planned with the access from the start, because on a live road or waterway it's often what makes the work permissible.
Do you make pier platforms and safety cages?
Yes. Pier column operation platforms and safety ladder cages are core products, alongside the cantilever brackets, anchors, edge protection, and loading platforms, so the access and the protection come from one factory.
Can you fabricate heavy or non-standard custom sizes?
Yes. We make heavy and non-standard gear to order, which is the norm on infrastructure work, tall piers, deep girders, and long or angled spans get custom brackets and platforms built to your dimensions.
Do you supply OEM and ship worldwide?
Yes. We export worldwide and support OEM and ODM orders, including custom specs, private labeling, and complete project kits, with samples available before a bulk order.
-
