Cantilever Scaffolding Systems: Components, Anchoring Methods, and How to Choose

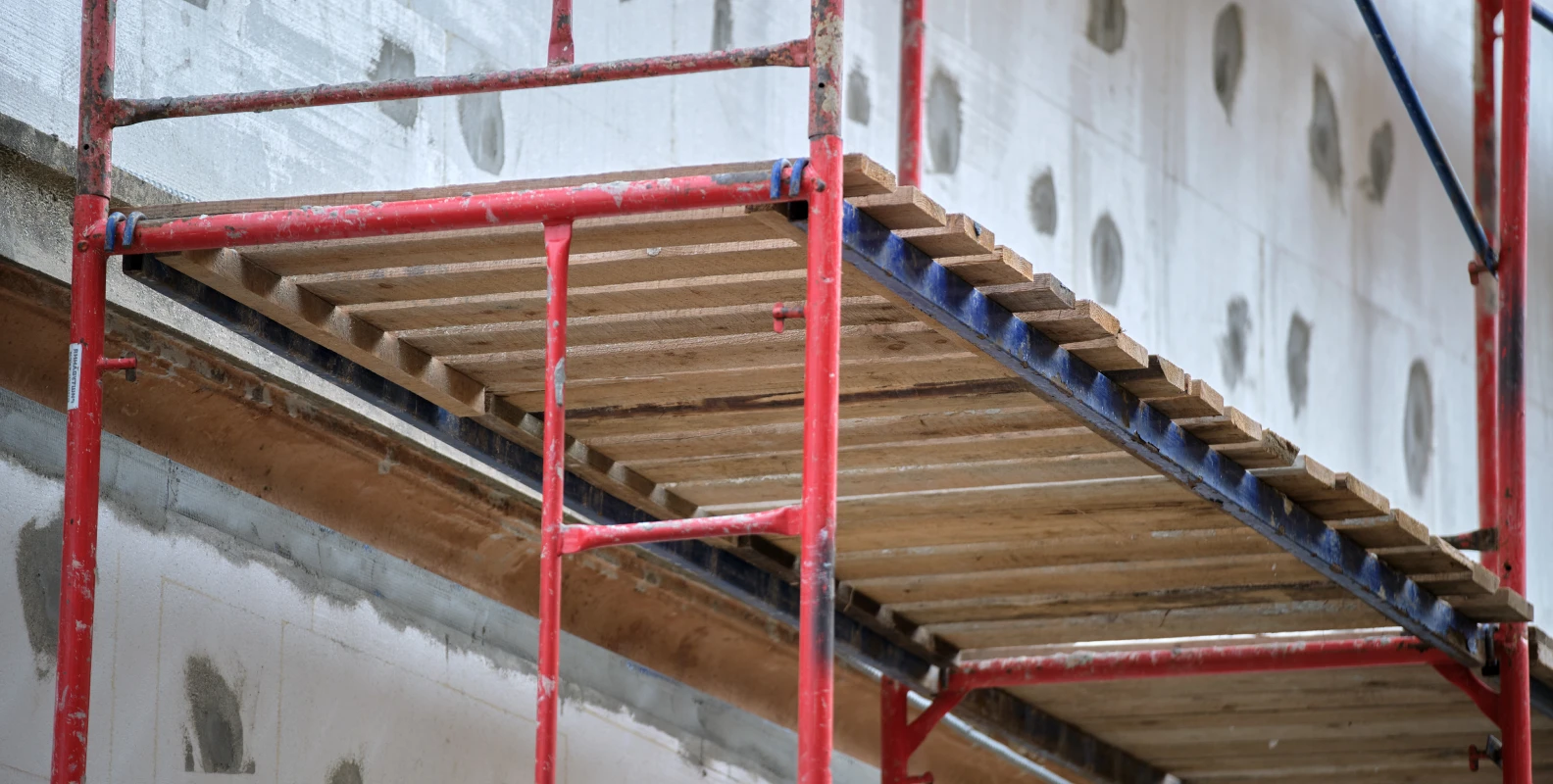

What is cantilever scaffolding?

Cantilever scaffolding is an exterior scaffold that takes its support from the building itself, not from the ground. Steel beams project out from each working level, anchor back into the floor slab or edge beam, and carry the weight of the scaffold sitting on top of them. You'll also see it called needle scaffolding, a name left over from the days of resting timber or steel "needles" through holes in the wall.

On a tall building the same idea gets repeated in tiers. You fix a layer of beams, build a scaffold section of roughly 20 meters on it, then install another beam layer a few floors up and start again. The load stays on the structure at each level instead of stacking one continuous scaffold from the pavement to the roof, which past a certain height is neither safe nor economical.

Typical situations where it's the right call:

• High-rise facades above the height a ground-supported scaffold can safely reach
• Sites over a busy street, entrance, or podium roof that has to stay clear
• Ground that can't carry the load, or where there's simply no room to stand a scaffold
• Corners, setbacks, and transfer floors where the facade steps in or out

How the system carries the load

The load path is short and worth understanding before you buy, because every component in the kit exists to serve it. Workers, planks, and materials sit on the platform. That weight runs down the standards into the cantilever I-beam. The beam then has to resist bending, so it's held two ways at once: the inner length is anchored down into the slab, and, on modern setups, an inclined tie rod pulls up on the outer end and feeds the force back into the wall above. Get either connection wrong and the beam rotates. That's the failure mode the whole design is built to prevent.

Because each beam layer only carries the section directly above it, contractors re-cantilever at set intervals as the building rises. Every layer is its own small structure with its own anchors, checked before the scaffold goes up.

Core components of a cantilever scaffolding system

A full kit is more than beams. Here's what goes into one and what each part does.

Two notes from the shop floor. First, thread quality on the tie rod and turnbuckle is what decides whether a crew can actually adjust the rod on site after a few weeks in the weather, so it's worth checking. Second, the embedded insert has to match the bolt you'll thread into it months later; a square nut inside the insert spreads the pull-out load and is a small detail that quietly matters.

Two ways to anchor the beam: traditional vs. tie-rod method

Almost every quote you get will use one of two anchoring approaches. The difference drives your steel bill, your schedule, and how much the beams damage the structure.

Traditional embedded I-beam

The older method runs a long I-beam deep into the building and pins it to the floor slab with embedded U-rings or a welded anchor. To stay stable, the anchored length inside has to be at least 1.25 times the length hanging outside, so a 1.5 m cantilever needs close to 2 m of beam buried indoors. A steel pressure plate of 10 mm or more sits over the beam, and the anchor rings are round steel of 16 mm or thicker set about 200 mm from the beam.

It works, and it's still specified. The drawbacks are practical: the beam cuts through the slab and wall, which then have to be sealed and patched; a single 4-6 m beam is heavy and usually needs a crane to place and remove; the buried section gets in the way of interior masonry and floor work; and the openings are a common leak path later. Steel use is high and the beams don't turn over well.

New tie-rod (turnbuckle) method

The modern kit keeps the beam short and outside the building. Instead of burying it, you cast a threaded insert into the outer wall or edge beam and bolt the beam on. An inclined tie rod, tensioned by a closed-body turnbuckle, carries the load up into the wall above. Because the connection is bolted, not welded, nothing gets cut and nothing needs patching.

This is where the numbers move. Peer-reviewed testing of inclined tensioned steel cantilever scaffolding found it uses more than 50% less steel than the traditional method, with faster, mostly prefabricated installation and no anchoring inside the building to disrupt interior trades. Bolt fixings also can't be quietly removed by a crew looking to save time, which closes off a real safety risk. And since the parts come off clean, the beams, rods, turnbuckles, and pins move to the next job instead of the scrap pile.

Specs and safety requirements that matter

Cantilever scaffolding is an engineered, project-designed system in every serious market, so treat the figures below as the common baseline your engineer will work from, not a substitute for a calculation.

• Beam: 16#/18# I-beam, Q235, biaxially symmetric, section height ≥160 mm, spaced ≤1.6 m.
• Traditional anchorage: buried length ≥1.25× the cantilever length; pressure plate ≥10 mm; anchor round steel ≥16 mm.
• Tie rod: installed at 45° or steeper to the beam; tensioned only after the upper anchor concrete reaches 75% of design strength.
• Concrete gates: C15 or higher before erecting the scaffold; the beam's outer end set 1-2 cm high, never sloping down.
• Section height: a single cantilever lift is commonly capped near 20 m; re-cantilever for anything taller.
• Reinforcement: where cantilever ends exceed 1.5 m or beams meet at a corner, add 200×200×10 mm plates and full welds.

On standards: OSHA 1926.451 requires any cantilevered or eccentric load to be tied, guyed, or braced against tipping, every component to hold at least four times its intended load, and fall protection above 10 ft. In the UK, cantilever scaffolds are a special scaffold under NASC TG20 and BS EN 12811 and must be designed by a competent engineer, then inspected before first use and at least every seven days. Wherever you ship, the rule is the same in spirit: no cantilever scaffold goes up without a design behind it.

How to choose the right cantilever setup

Spec starts with the building, not the catalog. Height and floor cycle tell you the beam layer spacing and how many times you'll re-cantilever. The facade tells you whether standard straight beams cover it or whether corners and setbacks need adjustable-angle beams. The load class, tied to what trades will use the scaffold, sizes the beam and rod.

Once the geometry is set, the quality checks are straightforward. Look for the right steel grade and a real galvanizing spec on the rods and turnbuckles, since these live outdoors for months. Confirm the embedded insert matches the bolt you'll use later. Ask for mill and load test reports, not just a data sheet. And weigh turnover: a bolted, standardized kit that comes back off the wall intact lowers your real cost per square meter far more than a slightly cheaper beam that ends up as scrap after one use.

One more sourcing tip. Buying the beams, tie rods, turnbuckles, anchors, and pins as a matched set from one maker saves you the fit problems that show up when threads and hole sizes come from three suppliers. If your job also needs formwork installation bolts, adjustable steel props, or a material loading platform, sourcing them together keeps the whole package consistent.

Request a spec-matched quote

We manufacture cantilever beams and the full anchoring kit and ship to contractors and distributors worldwide. Send us the building height, floor cycle, and facade details, and we'll match a complete set of beams, tie rods, turnbuckles, embedded parts, and pins, in custom lengths and with test reports. Samples and OEM supply are available. Reach out through our contact page for a quote and lead time.

Frequently asked questions

What is cantilever scaffolding used for?

It's used where you can't build up from the ground: high-rise facades above ground-scaffold height, sites over a street or podium roof that must stay clear, or ground that won't carry the load. The scaffold hangs off the building on steel beams instead of standing on footings.

What size I-beam is used for a cantilever scaffold?

Most projects use a 16# or 18# hot-rolled I-beam in Q235 steel, with a section height of at least 160 mm and beams spaced no more than about 1.6 m apart. The exact size comes from the project load calc. H-section steel is used where a wider flange or higher capacity is needed.

What's the difference between traditional and tie-rod cantilever scaffolding?

Traditional anchoring runs a long I-beam deep into the building and pins it to the slab with embedded U-rings, so the beam cuts through the floor and wall. The tie-rod method keeps a short beam outside, embeds only a bolt in the outer wall or edge beam, and carries the load with an inclined rod tensioned by a closed-body turnbuckle. Testing and site data both show the tie-rod method uses more than 50% less steel and installs faster.

How high can a cantilever scaffold go?

A single cantilever section is usually capped near 20 m. For taller buildings you install a new beam layer every few floors and start a fresh section, so the system can follow a tower of any height. In markets like the UK it's treated as a special scaffold and must be designed by a competent engineer.

How is the cantilever beam fixed to the building?

Either by embedding steel anchor rings or U-bolts in the slab and seating the beam against them, or by casting a threaded insert into the outer wall and bolting the beam on, then adding an inclined tie rod. Embedded parts should use a square nut to spread the pull-out load, and the beam's outer end should sit 1-2 cm high, never sloping down.

Is cantilever scaffolding safe?

Yes, when it's engineer-designed and the anchor concrete has reached strength before loading. Common gates are C15+ concrete before erecting the scaffold and 75% design strength before tensioning the upper tie rod. OSHA also requires cantilevered loads to be braced against tipping and every part to hold at least four times its intended load.

Can the beams and tie rods be reused?

Yes, and that's the main economic case for the modern kit. Because the system is bolted and standardized rather than welded and cut, the beams, tie rods, turnbuckles, and pins come off clean and go to the next project, which is what brings the cost per square meter down.

•
